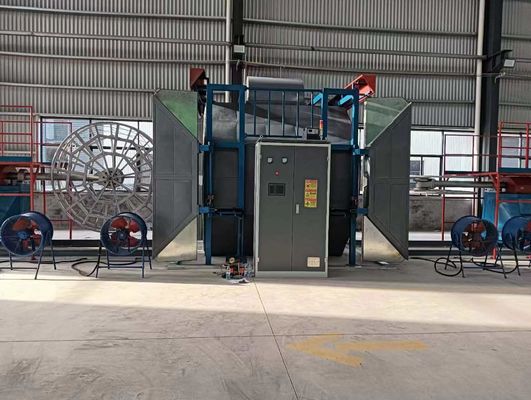

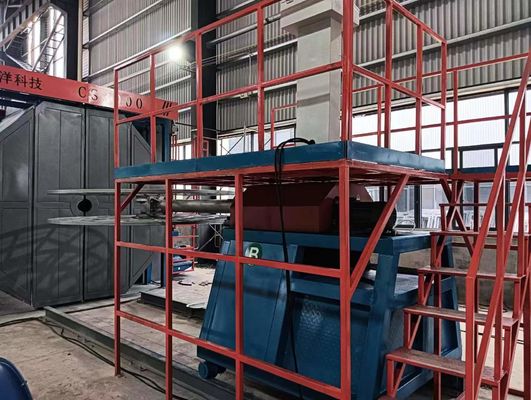

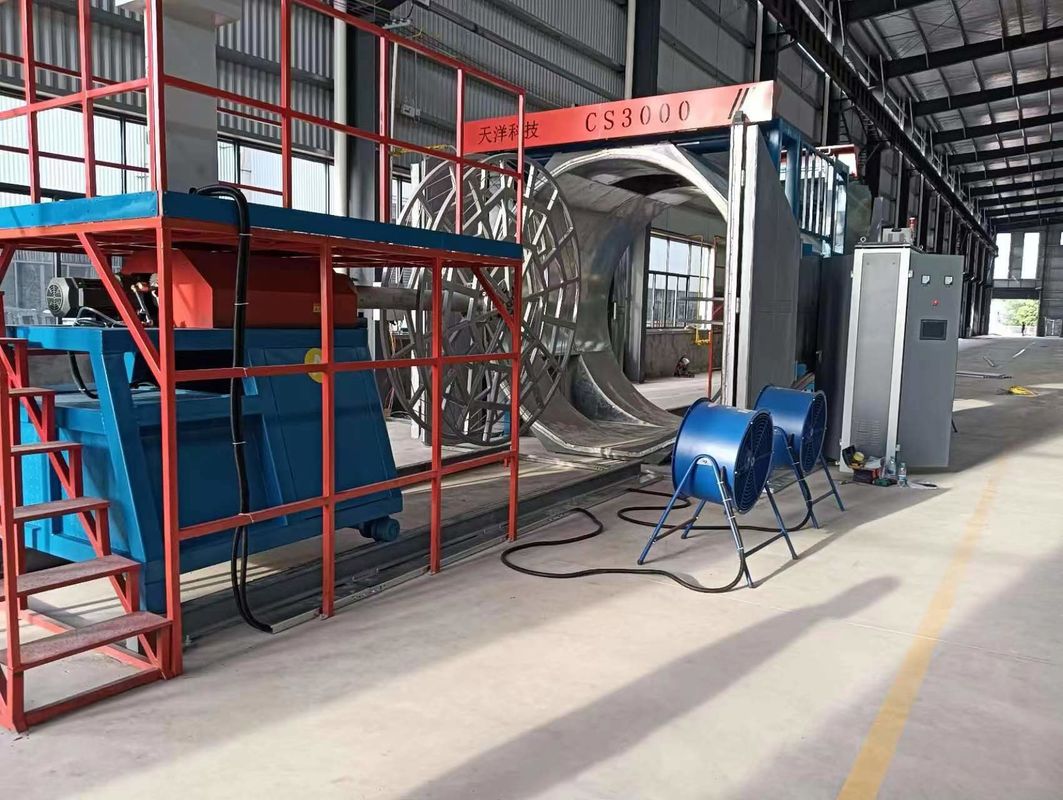

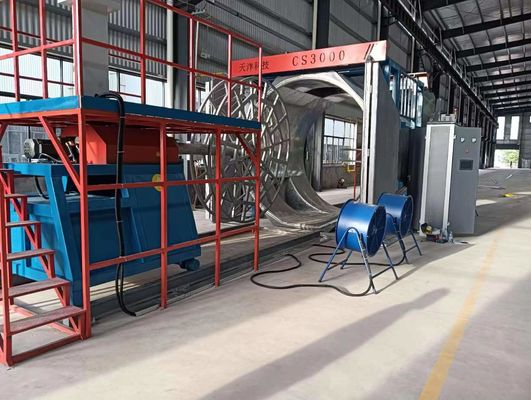

The "Tianyang" series shuttle type rotary molding machine is a machine that meets various production process requirements, with large product differentiation and medium to large-sized products. With a small footprint, it is a practical roll forming equipment.

Product details:

  Mechanical part ·Modular design and manufacturing of fully assembled equipment; ·The oven is available in two forms: octagonal and cylindrical, and can be customized according to customer needs;

·The oven door adopts a folding opening method (suitable for equipment above 3000), which occupies a small area and has low deformation, improving safety; ·Real time monitoring of oven temperature to reduce energy consumption and improve efficiency;

The nozzle of the top air duct of the drying duct is made of 304 stainless steel, which is durable and long-lasting; combustion system :

  The combustion machine adopts Italian Riyalo, with low temperature control fluctuations and good product forming effect. Suitable for natural gas and liquefied petroleum gas.

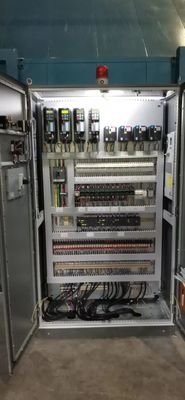

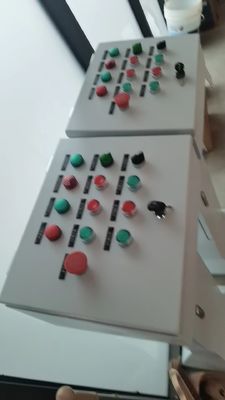

control system PLC system:

  Adopting Siemens control system, each arm can be individually set with three different heating temperatures, times, and spindle speeds.

Cooling function:

  The cooling time, delay time, and water mist cooling time can be set separately; Storage function: Store the corresponding production process parameters of the product.

Disassembly and assembly process:

  The rotary arm adopts wireless remote control to disassemble and assemble the mold, which is safe, convenient, and efficient;

Arm form:

  Arm form can be customized according to customer needs straight arm, L arm, C arm

Scope of use:

 Shuttle rotoplastic equipment is widely used in the production of water tanks, fuel tanks, amusement facilities, incubators, lights, and other rotoplastic products

Equipment specification
